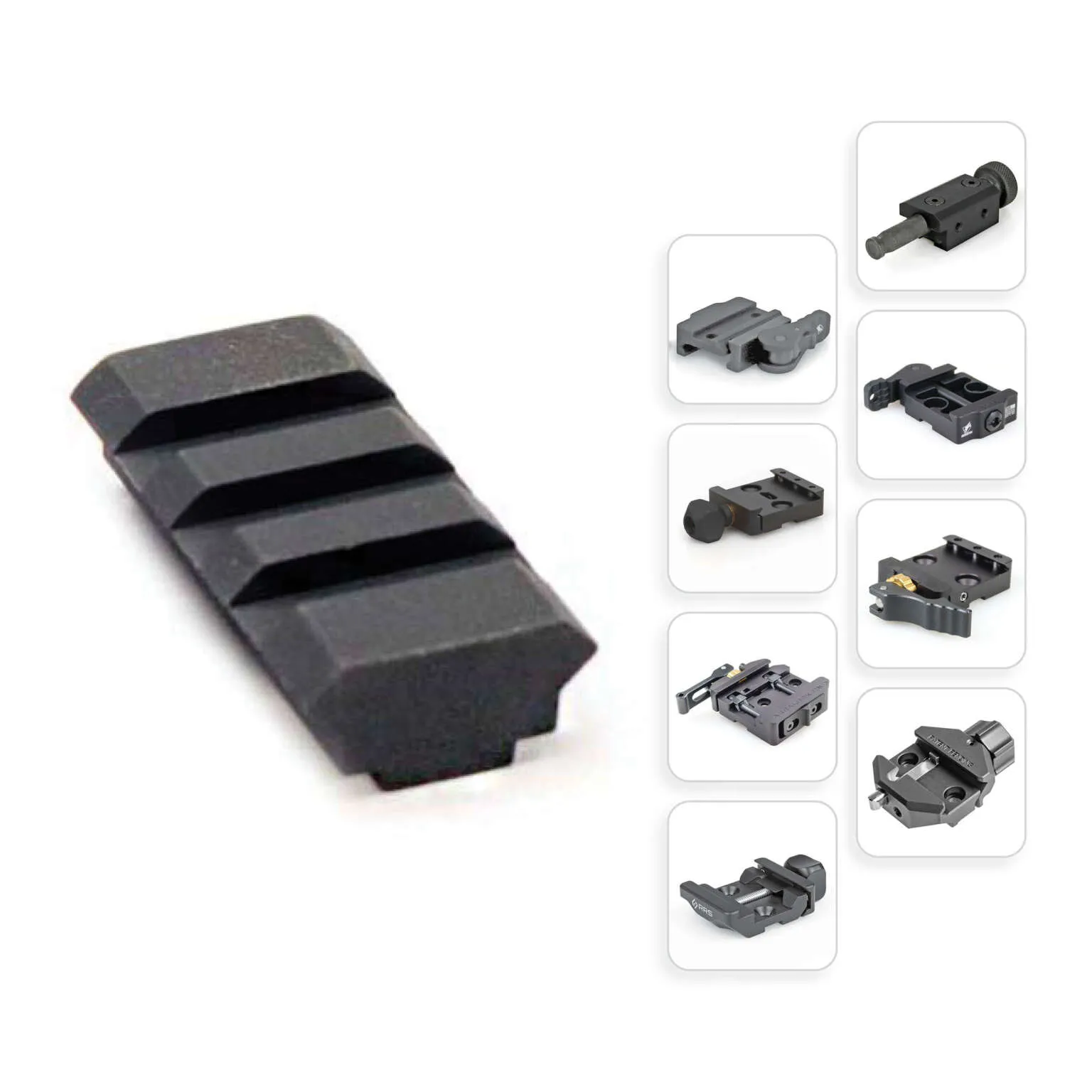

BT20-B: ATLAS® ACCURACY INTERNATIONAL SPIGOT BOTTOM RAIL PLUS
BT20-B: ATLAS® ACCURACY INTERNATIONAL SPIGOT BOTTOM RAIL PLUS - Image 2
BT20-B: ATLAS® ACCURACY INTERNATIONAL SPIGOT BOTTOM RAIL PLUS - Image 3
BT20-B: ATLAS® ACCURACY INTERNATIONAL SPIGOT BOTTOM RAIL PLUS - Image 4
BT20-B: ATLAS® ACCURACY INTERNATIONAL SPIGOT BOTTOM RAIL PLUS - Image 5
BT20-B: ATLAS® ACCURACY INTERNATIONAL SPIGOT BOTTOM RAIL PLUS - Image 6
BT20-B: ATLAS® ACCURACY INTERNATIONAL SPIGOT BOTTOM RAIL PLUS - Image 7
BT20-B: ATLAS® ACCURACY INTERNATIONAL SPIGOT BOTTOM RAIL PLUS - Image 8

BT20-B: ATLAS® ACCURACY INTERNATIONAL SPIGOT BOTTOM RAIL PLUS

Product ships in 5-7 working days.

£30.95

The BT20-B Atlas® Accuracy International Spigot Bottom Rail is the same rail found in the BT20, but consists of the bottom rail ONLY. It features two blind threaded 10/32 holes and center-to-center hole spacing of 1.100″

Machined to Picatinny rail standards from 6061-T6 aluminum with Mil-Spec Type III Class 2 finish. Available in black only. NO HARDWARE INCLUDED. 10-32 x 3/8″ Flathead Socket Screws available separately.

The BT20-B PLUS options consist of the BT20-B Bottom Rail PLUS your choice of various mounting options as detailed below.

This allows use of the quick detach lever on our “LW17” style of Atlas® Bipods OR the 2-screw mount style of Atlas® Bipods, while adapting to attachment of choice.

Any BT20-B PLUS option selected will be sent as a completed unit using appropriate hardware and Loctite® 243

Category: Brand:

Description

The BT20-B Atlas Accuracy International Spigot Bottom Rail is the same rail found in the BT20, but consists of the bottom 1913 rail only. It attaches to the BT19 AAIS on the bottom and accepts any rail mounted bipod.

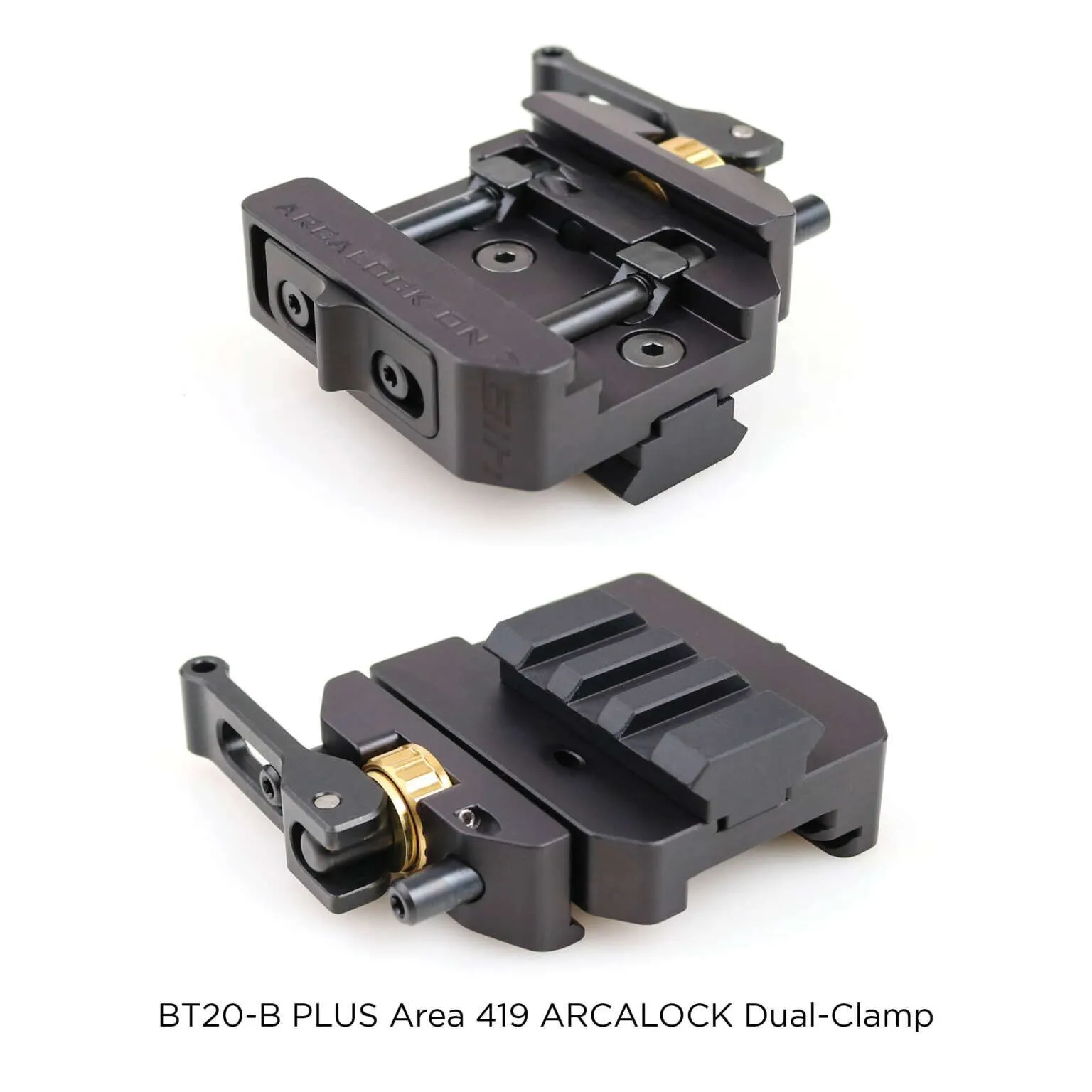

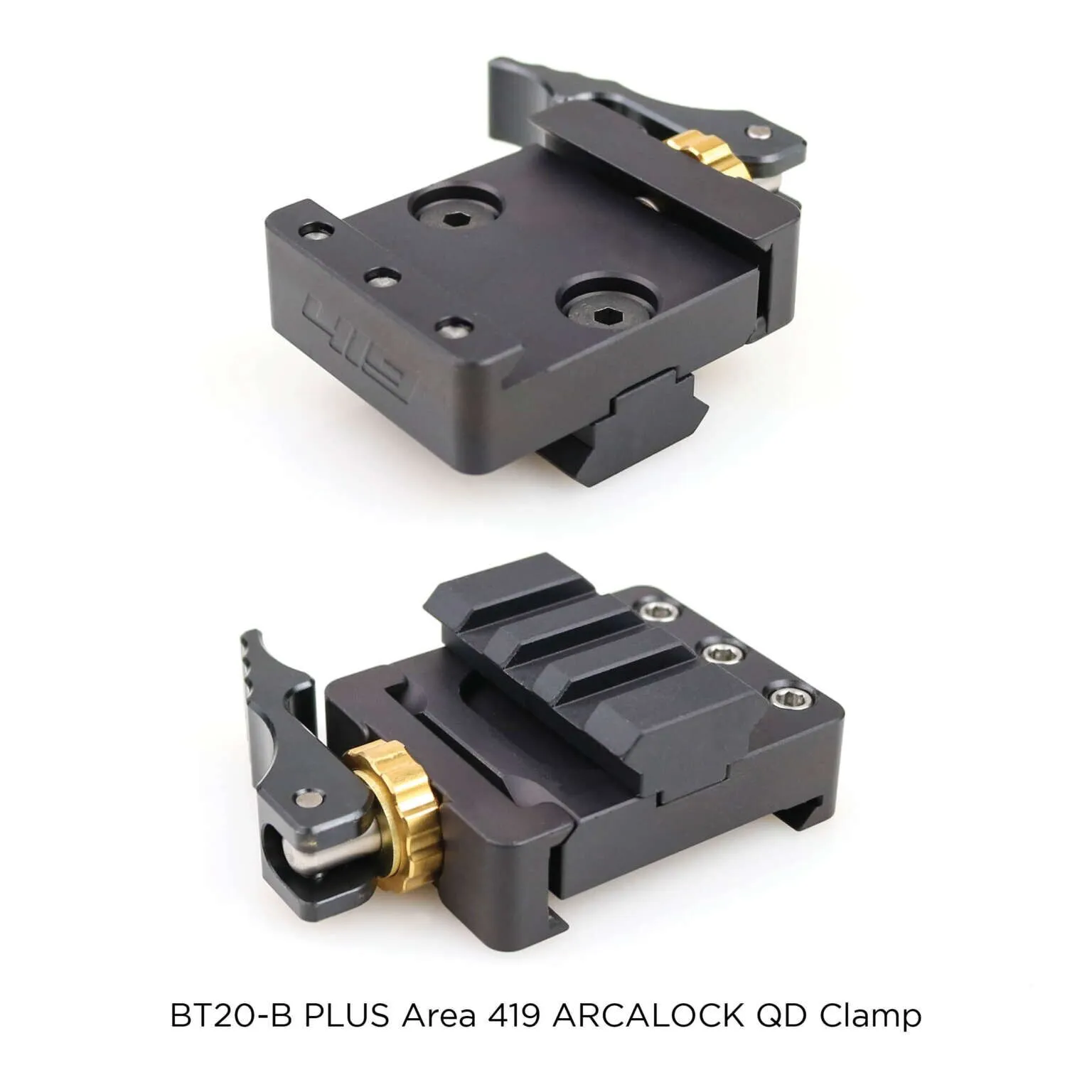

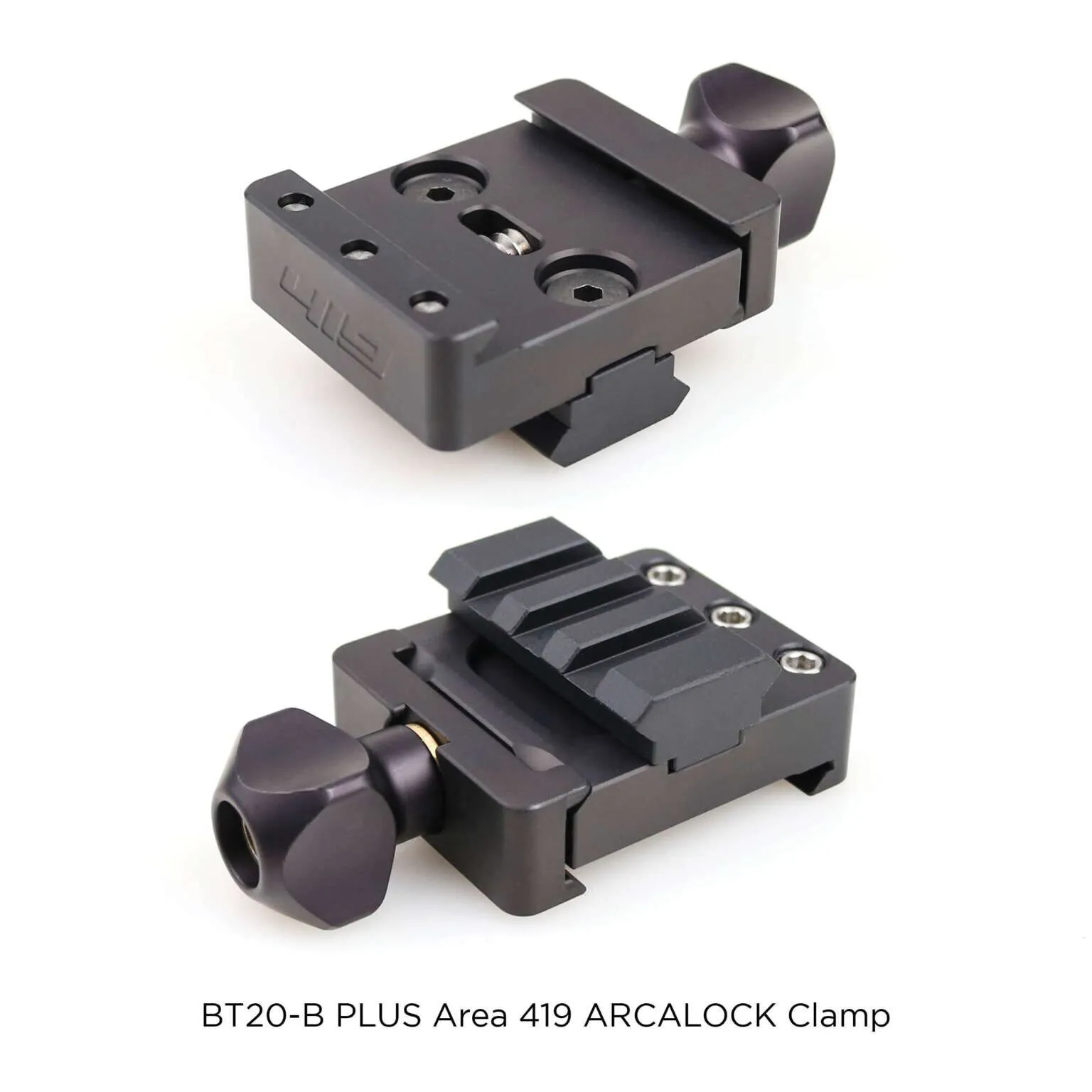

It is the same rail found on the BT21 TRG Bracket, BT43 Leveraged Rail and BT20-B/ARCALOCK Clamp. It will also attach to many ARCA rail adaptors currently on the market e.g. Area 419 with the same two hole pattern of 1.100” to the ARCA rail and accept any rail mounted bipod.

Machined to Picatinny rail standards from 6061-T6 aluminum with Mil-Spec Type III Class 2 finish. No hardware included. Available in black only.

Length: 1.60″
Weight: 0.57 ounces
