Description

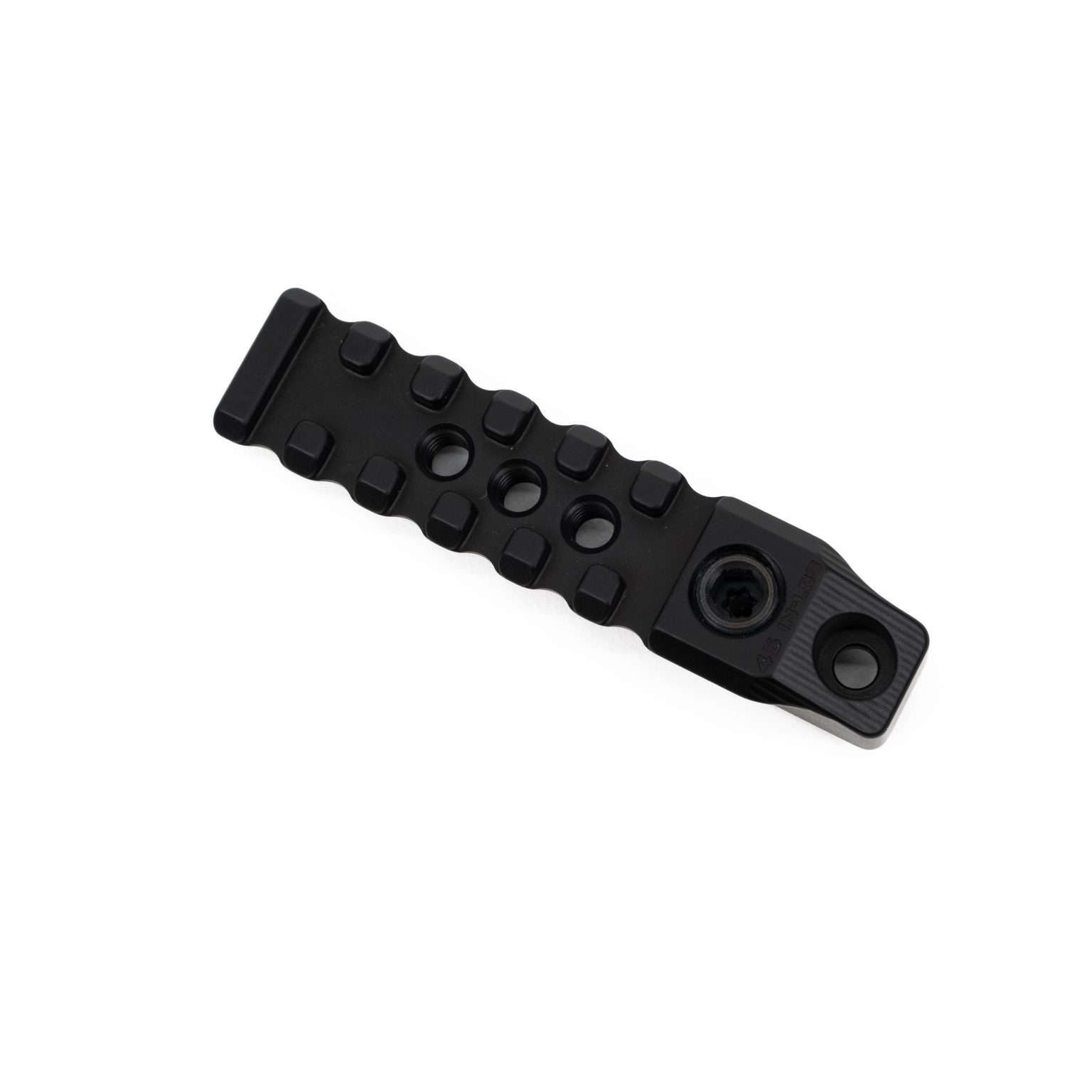

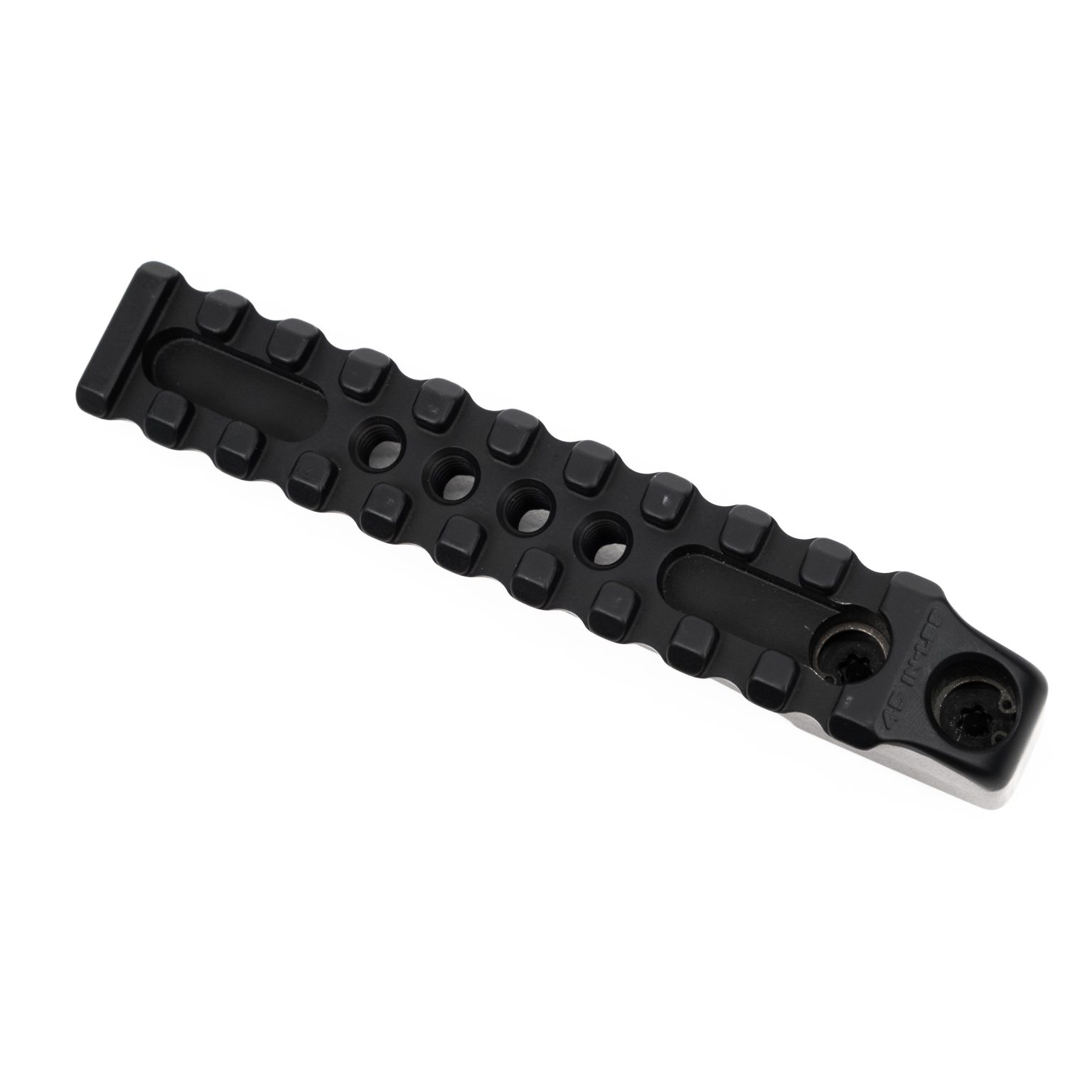

This rock solid diving board brings ultimate functionality to the Tactical One-Piece Scope Mount. The diving board mounts via our patent pending dual taper mounting point on the top of the scope cap, delivering the most secure attachment possible. Useful for items ranging from levels and dope cards to red dots and weapons-mounted laser range finders. The durability and rigidity of this piece are the best in class, making your return to zero that much better.

Standard Height Specs

1.11″ tall, 1.93″ from the optical center to top of pic on a 34mm optic
Four 1/4 x 20 holes
10 slot MIL-STD-1913 spec rail
2.5oz, including all hardware
Type III Hardcoat Black anodized
Captive mounting screws
CNC Milled in America from American 7075 Aluminum
Low Height Specs

0.70″ tall, 1.52″ from the optical center to top of pic on a 34mm optic
Three 1/4 x 20 holes
6 slot MIL-STD-1913 spec rail
1.5oz, including all hardware
Type III Hardcoat Black anodized
Captive mounting screws
CNC Milled in America from American 7075 Aluminum
